Radio Waves

Radio waves are a type of electromagnetic radiation with wavelength in the electromagnetic  spectrum longer than infrared light. Radio waves have frequencies as high as 300 gigahertz (GHz) to as low as 30 hertz (Hz). At 300 GHz, the corresponding wavelength is 1 mm (shorter than a grain of rice); at 30 Hz the corresponding wavelength is 10,000 km (longer than the radius of the Earth). Like all electromagnetic waves, radio waves in a vacuum travel at the speed of light, and in the Earth’s atmosphere at a close, but slightly lower speed. Radio waves are generated by charged particles undergoing acceleration, such as time-varying electric currents. Naturally occurring radio waves are emitted by lightning and astronomical objects, and are part of the blackbody radiation emitted by all warm objects.

Animation of a half-wave depole antenna radiating radio waves, showing the electric fields lines. The antenna in the center is two vertical metal rods connected to a ratio trans mitter. The transmitter applies an alternating electric current to the rods, which charges them alternately positive (+) and negative (−). Loops of electric field leave the antenna and travel away at the speed of light; these are the radio waves. In this animation the action is shown slowed down enormously.

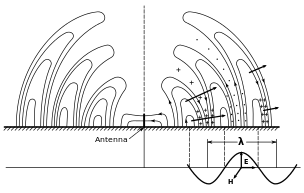

Diagram of the electric fields (E) and magnetic fields (H) of radio waves emitted by a monopole radio transmitting antenna (small dark vertical line in the center). The E and H fields are perpendicular, as implied by the phase diagram in the lower righ.

Electromagnetic Radiation

For continue reading with electromagnetic readition click below

http://www.pharmaguidesline.com/electromagnetic-radiation/

Wavelength

the wavelength is the spatial period of a periodic wave—the distance over which the wave’s shape repeats. It is the distance between consecutive corresponding points of the same phase on the wave, such as two adjacent crests, troughs, or zero crossings, and is a characteristic of both traveling waves and standing waves, as well as other spatial wave patterns. The inverse of the wavelength is called the spatial frequency. Wavelength is commonly designated by the Greek letter lambda (λ). The term wavelength is also sometimes applied to modulated waves, and to the sinusoidal envelopes of modulated waves or waves formed by interference of several sinusoids

The wavelength of a sine wave, λ, can be measured between any two points with the same phase, such as between crests (on top), or troughs (on bottom), or corresponding zero crossing as shown.

Electromagnetic Spectrum

The electromagnetic spectrum is the range of frequencies (the spectrum) of electromagnetic  radiation and their respective wavelength and photon energies.

The electromagnetic spectrum covers electromagnetic waves with frequencies ranging from below one hertz to above 1025 hertz, corresponding to wavelength from thousands of kilometers down to a fraction of the size of an atomic nucleus. This frequency range is divided into separate bands, and the electromagnetic waves within each frequency band are called by different names; beginning at the low frequency (long wavelength) end of the spectrum these are: ratio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays at the high-frequency (short wavelength) end. The electromagnetic waves in each of these bands have different characteristics, such as how they are produced, how they interact with matter, and their practical applications. The limit for long wavelengths is the size of the universe itself, while it is thought that the short wavelength limit is in the vicinity of the Planck length. Gamma rays, X-rays, and high ultraviolet are classified as ionizing radiation as their photons have enough energy to ionize atoms, causing chemical reactions.

Infrared Light

Infrared (IR), sometimes called infrared light, is electromagnetic radiation (EMR) with wavelengths longer than those of visible light. It is therefore invisible to the human eye. IR is generally understood to encompass wavelengths from the nominal red edge of the visible spectrum around 700 nanometers (frequency 430 THz), to 1 millimeter (300 GHz). (although the longer IR wavelengths are often designated rather as terahertz radiation). Black-body radiation from objects near room temperature is almost all at infrared wavelengths. As a form of electromagnetic radiation, IR propagates energy and momentum, with properties corresponding to both those of a wave and of a particle, the photon.

Gigahertz (GHz)

The hertz (symbol: Hz) is the derived unit of frequency in the International System of Units (SI) and is defined as one cycle per second. It is named after Heinrich Rudolf Hertz (1857-1894), the first person to provide conclusive proof of the existence of electromagnetic waves. Hertz are commonly expressed in multiples: kilohertz (103 Hz, kHz), megahertz (106 Hz, MHz), gigahertz (109 Hz, GHz), terahertz (1012 Hz, THz), petahertz (1015 Hz, PHz), exahertz (1018 Hz, EHz), and zettahertz (1021 Hz, ZHz).

Hertz
Unit SystemSI derived unit
Unit offrequency
SymbolHz
Named afterHeinrich Hertz
In SI base unitss−1

Speed of light

The speed of light in vacuum, commonly denoted c, is a universal physical constant important in many areas of physics. Its exact value is defined as 299792458 metres per second (approximately 300000 km/s, or 186000 mi/s). It is exact because, by international agreement, a metre is defined as the length of the path travelled by light in vacuum during a time interval of 1299792458 second. According to special relativity, c is the upper limit for the speed at which conventional matter, energy or any signal carrying information can travel through space

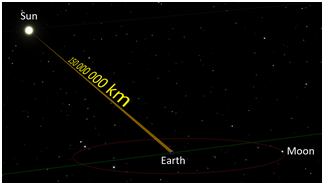

Sunlight  takes about 8 minutes 17 seconds to travel the average distance from the surface of the Sun to the Earth.
Exact values
Metres per second299792458
Approximate values (to three significant digits)
Kilometers per hour1080000000
Miles per second186000
Miles per hour671000000
Astronomical; units per day173
parsecs per year0.307
Approximate light signal travel times
DistanceTime
One foot1.0 ns
one metre3.3 ns
from geostationary orbit to Earth119 ms
the length of Earth’s equator134 ms
from Moon to Earth1.3 s
from Sun to Earth (1 AU)8.3 min
one light year1.0 year
one parsec3.26 years
from nearest star to Sun (1.3 pc)4.2 years
from the nearest galaxy (the Canis major Dwarf Galaxy) to Earth25000 years
across the Milky Way100000 years
from the Andromeda Galaxy to Earth2.5 million years

Charged particle

charged particle is a particle with an electric charge. It may be an ion, such as a molecule or atom with a surplus or deficit of electrons relative to protons. It can also be an electron or a proton, or another elementary particle, which are all believed to have the same charge[1] (except antimatter). Another charged particle may be an atomic nucleus devoid of electrons, such as an alpha particle.

Electric current

An electric current is a stream of charged particles, such as electrons or ions, moving through an electrical conductor or space. It is measured as the net rate of flow of electric charge through a surface or into a control volume. The moving particles are called charge carriers, which may be one of several types of particles, depending on the conductor. In electric circuits the charge carriers are often electrons moving through a wire. In semiconductors they can be electrons or holes. In a electrolyte the charge carriers are ions, while in plasma, an ionized gas, they are ions and electrons.

The SI unit of electric current is the ampere, or amp, which is the flow of electric charge across a surface at the rate of one coulomb per second. The ampere (symbol: A) is an SI base unit Electric current is measured using a device called an ammeter

A simple electric circuit, where current is represented by the letter i. The relationship between the voltage (V), resistance (R), and current (I) is V=IR; this is known as Ohm’s law.
Common symbolsI
SI unitampere
Derivations from
other quantities
Dimension

Black-body radiation

Black-body radiation is the thermal electromagnetic radiation within or surrounding a body in thermodynamic equilibrium with its environment, emitted by a black body (an idealized opaque, non-reflective body). It has a specific spectrum of wavelengths, inversely related to intensity that depend only on the body’s temperature, which is assumed for the sake of calculations and theory to be uniform and constant.

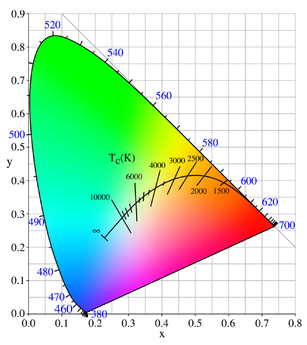

The color (chromaticity) of black-body radiation scales inversely with the temperature of the black body; the locus of such colors, shown here in CIE 1931 x,y, space, is known as the Planckian locus.

Radiant Energy

Electromagnetic Field

Ultraviolet–visible spectroscopy
